Socio-Cognitive Systems – a position statement

By Frank Dignum1, Bruce Edmonds2 and Dino Carpentras3

1Department of Computing Science, Faculty of Science and Technology, Umeå University, frank.dignum@umu.se
2Centre for Policy Modelling, Manchester Metropolitan University, bruce@edmonds.name
3Department of Psychology, University of Limerick, dino.carpentras@gmail.com

In this position paper we argue for the creation of a new ‘field’: Socio-Cognitive Systems. The point of doing this is to highlight the importance of a multi-levelled approach to understanding those phenomena where the cognitive and the social are inextricably intertwined – understanding them together.

What goes on ‘in the head’ and what goes on ‘in society’ are complex questions. Each of these deserves serious study on their own – motivating whole fields to answer them. However, it is becoming increasingly clear that these two questions are deeply related. Humans are fundamentally social beings, and it is likely that many features of their cognition have evolved because they enable them to live within groups (Herrmann et al. 20007). Whilst some of these social features can be studied separately (e.g. in a laboratory), others only become fully manifest within society at large. On the other hand, it is also clear that how society ‘happens’ is complicated and subtle and that these processes are shaped by the nature of our cognition. In other words, what people ‘think’ matters for understanding how society ‘is’ and vice versa. For many reasons, both of these questions are difficult to answer. As a result of these difficulties, many compromises are necessary in order to make progress on them, but each compromise also implies some limitations. The main two types of compromise consist of limiting the analysis to only one of the two (i.e. either cognition or society)[1]. To take but a few examples of this.

  1. Neuro-scientists study what happens between systems of neurones to understand how the brain does things and this is so complex that even relatively small ensembles of neurones are at the limits of scientific understanding.
  2. Psychologists see what can be understood of cognition from the outside, usually in the laboratory so that some of the many dimensions can be controlled and isolated. However, what can be reproduced in a laboratory is a limited part of behaviour that might be displayed in a natural social context.
  3. Economists limit themselves to the study of the (largely monetary) exchange of services/things that could occur under assumptions of individual rationality, which is a model of thinking not based upon empirical data at the individual level. Indeed it is known to contradict a lot of the data and may only be a good approximation for average behaviour under very special circumstances.
  4. Ethnomethodologists will enter a social context and describe in detail the social and individual experience there, but not generalise beyond that and not delve into the cognition of those they observe.
  5. Other social scientists will take a broader view, look at a variety of social evidence, and theorise about aspects of that part of society. They (almost always) do not include individual cognition into account in these and do not seek to integrate the social and the cognitive levels.

Each of these in the different ways separate the internal mechanisms of thought from the wider mechanisms of society or limits its focus to a very specific topic. This is understandable; what each is studying is enough to keep them occupied for many lifetimes. However, this means that each of these has developed their own terms, issues, approaches and techniques which make relating results between fields difficult (as Kuhn, 1962, pointed out).

SCS Picture 1

Figure 1: Schematic representation of the relationship between the individual and society. Individuals’ cognition is shaped by society, at the same time, society is shaped by individuals’ beliefs and behaviour.

This separation of the cognitive and the social may get in the way of understanding many things that we observe. Some phenomena seem to involve a combination of these aspects in a fundamental way – the individual (and its cognition) being part of society as well as society being part of the individual. Some examples of this are as follows (but please note that this is far from an exhaustive list).

  • Norms. A social norm is a constraint or obligation upon action imposed by society (or perceived as such). One may well be mistaken about a norm (e.g. whether it is ok to casually talk to others at a bus stop), thus it is also a belief – often not told to one explicitly but something one needs to infer from observation. However, for a social norm to hold it also needs to be an observable convention. Decisions to violate social norms require that the norm is an explicit (referable) object in the cognitive model. But the violation also has social consequences. If people react negatively to violations the norm can be reinforced. But if violations are ignored it might lead to a norm disappearing. How new norms come about, or how old ones fade away, is a complex set of interlocking cognitive and social processes. Thus social norms are a phenomena that essentially involves both the social and the cognitive (Conte et al. 2013).
  • Joint construction of social reality. Many of the constraints on our behaviour come from our perception of social reality. However, we also create this social reality and constantly update it. For example, we can invent a new procedure to select a person as head of department or exit a treaty and thus have different ways of behaving after this change. However, these changes are not unconstrained in themselves. Sometimes the time is “ripe for change”, while at other times resistance is too big for any change to take place (even though a majority of the people involved would like to change). Thus what is socially real for us depends on what people individually believe is real, but this depends in complex ways on what other people believe and their status. And probably even more important: the “strength” of a social structure depends on the use people make of it. E.g. a head of department becomes important if all decisions in the department are deferred to the head. Even though this might not be required by university or law.
  • Identity. Our (social) identity determines the way other people perceive us (e.g. a sports person, a nerd, a family man) and therefore creates expectations about our behaviour. We can create our identities ourselves and cultivate them, but at the same time, when we have a social identity, we try to live up to it. Thus, it will partially determine our goals and reactions and even our feeling of self-esteem when we live up to our identity or fail to do so. As individuals we (at least sometimes) have a choice as to our desired identity, but in practice, this can only be realised with the consent of society. As a runner I might feel the need to run at least three times a week in order for other people to recognize me as runner. At the same time a person known as a runner might be excused from a meeting if training for an important event. Thus reinforcing the importance of the “runner” identity.
  • Social practices. The concept already indicates that social practices are about the way people habitually interact and through this interaction shape social structures. Practices like shaking hands when greeting do not always have to be efficient, but they are extremely socially important. For example, different groups, countries and cultures will have different practices when greeting and performing according to the practice shows whether you are part of the in-group or out-group. However, practices can also change based on circumstances and people, as it happened, for example, to the practice of shaking hands during the covid-19 pandemic. Thus, they are flexible and adapting to the context. They are used as flexible mechanisms to efficiently fit interactions in groups, connecting persons and group behaviour.

As a result, this division between cognitive and the social gets in the way not only of theoretical studies, but also in practical applications such as policy making. For example, interventions aimed at encouraging vaccination (such as compulsory vaccination) may reinforce the (social) identity of the vaccine hesitant. However, this risk and its possible consequences for society cannot be properly understood without a clear grasp of the dynamic evolution of social identity.

Computational models and systems provide a way of trying to understand the cognitive and the social together. For computational modellers, there is no particular reason to confine themselves to only the cognitive or only the social because agent-based systems can include both within a single framework. In addition, the computational system is a dynamic model that can represent the interactions of the individuals that connect the cognitive models and the social models. Thus the fact that computational models have a natural way to represent the actions as an integral and defining part of the socio-cognitive system is of prime importance. Given that the actions are an integral part of the model it is well suited to model the dynamics of socio-cognitive systems and track changes at both the social and the cognitive level. Therefore, within such systems we can study how cognitive processes may act to produce social phenomena whilst, at the same time, as how social realities are shaping the cognitive processes. Caarley and Newell (1994) discusses what is necessary at the agent level for sociality, Hofested et al. (2021) talk about how to understand sociality using computational models (including theories of individual action) – we want to understand both together. Thus, we can model the social embeddedness that Granovetter (1985) talked about – going beyond over- or under-socialised representations of human behaviour. It is not that computational models are innately suitable for modelling either the cognitive or the social, but that they can be appropriately structured (e.g. sets of interacting parts bridging micro-, meso- and macro-levels) and include arbitrary levels of complexity. Lots of models that represent the social have entities that stand for the cognitive, but do not explicitly represent much of that detail – similarly much cognitive modelling implies the social in terms of the stimuli and responses of an individual that would be to other social entities, but where these other entities are not explicitly represented or are simplified away.

Socio-Cognitive Systems (SCS) are: those models and systems where both cognitive and social complexity are represented with a meaningful level of processual detail.

A good example of an application where this appeared of the biggest importance was in simulations for the covid-19 crisis. The spread of the corona virus on macro level could be given by an epidemiological model, but the actual spreading depended crucially on the human behaviour that resulted from individuals’ cognitive model of the situation. In Dignum (2021) it was shown how the socio-cognitive system approach was fundamental to obtaining better insights in the effectiveness of a range of covid-19 restrictions.

Formality here is important. Computational systems are formal in the sense that they can be unambiguously passed around (i.e. unlike language, it is not differently re-interpreted by each individual) and operate according to their own precisely specified and explicit rules. This means that the same system can be examined and experimented on by a wider community of researchers. Sometimes, even when the researchers from different fields find it difficult to talk to one another, they can fruitfully cooperate via a computational model (e.g. Lafuerza et al. 2016). Other kinds of formal systems (e.g. logic, maths) are geared towards models that describe an entire system from a birds eye view. Although there are some exceptions like fibred logics Gabbay (1996), these are too abstract to be of good use to model practical situations. The lack of modularity and has been addressed in context logics Giunchiglia, F., & Ghidini, C. (1998). However, the contexts used in this setting are not suitable to generate a more general societal model. It results in most typical mathematical models using a number of agents which is either one, two or infinite (Miller and Page 2007), while important social phenomena happen with a “medium sized” population. What all these formalisms miss is a natural way of specifying the dynamics of the system that is modelled, while having ways to modularly describe individuals and the society resulting from their interactions. Thus, although much of what is represented in Socio-Cognitive Systems is not computational, the lingua franca for talking about them is.

The ‘double complexity’ of combining the cognitive and the social in the same system will bring its own methodological challenges. Such complexity will mean that many socio-cognitive systems will be, themselves, hard to understand or analyse. In the covid-19 simulations, described in (Dignum 2021), a large part of the work consisted of analysing, combining and representing the results in ways that were understandable. As an example, for one scenario 79 pages of graphs were produced showing different relations between potentially relevant variables. New tools and approaches will need to be developed to deal with this. We only have some hints of these, but it seems likely that secondary stages of analysis – understanding the models – will be necessary, resulting in a staged approach to abstraction (Lafuerza et al. 2016). In other words, we will need to model the socio-cognitive systems, maybe in terms of further (but simpler) socio-cognitive systems, but also maybe with a variety of other tools. We do not have a view on this further analysis, but this could include: machine learning, mathematics, logic, network analysis, statistics, and even qualitative approaches such as discourse analysis.

An interesting input for the methodology of designing and analysing socio-cognitive systems is anthropology and specifically ethnographical methods. Again, for the covid-19 simulations the first layer of the simulation was constructed based on “normal day life patterns”. Different types of persons were distinguished that each have their own pattern of living. These patterns interlock and form a fabric of social interactions that overall should satisfy most of the needs of the agents. Thus we calibrate the simulation based on the stories of types of people and their behaviours. Note that doing the same just based on available data of behaviour would not account for the underlying needs and motives of that behaviour and would not be a good basis for simulating changes. The stories that we used looked very similar to the type of reports ethnographers produce about certain communities. Thus further investigating this connection seems worthwhile.

For representing the output of the complex socio-cognitive systems we can also use the analogue of stories. Basically, different stories show the underlying (assumed) causal relations between phenomena that are observed. E.g. seeing an increase in people having lunch with friends can be explained by the fact that a curfew prevents people having dinner with their friends, while they still have a need to socialize. Thus the alternative of going for lunch is chosen more often. One can see that the explaining story uses both social as well as cognitive elements to describe the results. Although in the covid-19 simulations we have created a number of these stories, they were all created by hand after (sometimes weeks) of careful analysis of the results. Thus for this kind of approach to be viable, new tools are required.

Although human society is the archetypal socio-cognitive system, it is not the only one. Both social animals and some artificial systems also come under this category. These may be very different from the human, and in the case of artificial systems completely different. Thus, Socio-Cognitive Systems is not limited to the discussion of observable phenomena, but can include constructed or evolved computational systems, and artificial societies. Examination of these (either theoretically or experimentally) opens up the possibility of finding either contrasts or commonalities between such systems – beyond what happens to exist in the natural world. However, we expect that ideas and theories that were conceived with human socio-cognitive systems in mind might often be an accessible starting point for understanding these other possibilities.

In a way, Socio-Cognitive Systems bring together two different threads in the work of Herbert Simon. Firstly, as in Simon (1948) it seeks to take seriously the complexity of human social behaviour without reducing this to overly simplistic theories of individual behaviour. Secondly, it adopts the approach of explicitly modelling the cognitive in computational models (Newell & Simon 1972). Simon did not bring these together in his lifetime, perhaps due to the limitations and difficulty of deploying the computational tools to do so. Instead, he tried to develop alternative mathematical models of aspects of thought (Simon 1957). However, those models were limited by being mathematical rather than computational.

To conclude, a field of Socio-Cognitive Systems would consider the cognitive and the social in an integrated fashion – understanding them together. We suggest that computational representation or implementation might be necessary to provide concrete reference between the various disciplines that are needed to understand them. We want to encourage research that considers the cognitive and the social in a truly integrated fashion. If by labelling a new field does this it will have achieved its purpose. However, there is the possibility that completely new classes of theory and complexity may be out there to be discovered – phenomena that are denied if either the cognitive or the social are not taken together – a new world of a socio-cognitive systems.

Notes

[1] Some economic models claim to bridge between individual behaviour and macro outcomes, however this is traditionally notional. Many economists admit that their primary cognitive models (varieties of economic rationality) are not valid for individuals but are what people on average do – i.e. this is a macro-level model. In other economic models whole populations are formalised using a single representative agent. Recently, there are some agent-based economic models emerging, but often limited to agree with traditional models.

Acknowledgements

Bruce Edmonds is supported as part of the ESRC-funded, UK part of the “ToRealSim” project, grant number ES/S015159/1.

References

Carley, K., & Newell, A. (1994). The nature of the social agent. Journal of mathematical sociology, 19(4): 221-262. DOI: 10.1080/0022250X.1994.9990145

Conte R., Andrighetto G. and Campennì M. (eds) (2013) Minding Norms – Mechanisms and dynamics of social order in agent societies. Oxford University Press, Oxford.

Dignum, F. (ed.) (2021) Social Simulation for a Crisis; Results and Lessons from Simulating the COVID-19 Crisis. Springer.

Herrmann E., Call J, Hernández-Lloreda MV, Hare B, Tomasello M (2007) Humans have evolved specialized skills of social cognition: The cultural intelligence hypothesis. Science 317(5843): 1360-1366. DOI: 10.1126/science.1146282

Hofstede, G.J, Frantz, C., Hoey, J., Scholz, G. and Schröder, T. (2021) Artificial Sociality Manifesto. Review of Artificial Societies and Social Simulation, 8th Apr 2021. https://rofasss.org/2021/04/08/artsocmanif/

Gabbay, D. M. (1996). Fibred Semantics and the Weaving of Logics Part 1: Modal and Intuitionistic Logics. The Journal of Symbolic Logic, 61(4), 1057–1120.

Ghidini, C., & Giunchiglia, F. (2001). Local models semantics, or contextual reasoning= locality+ compatibility. Artificial intelligence, 127(2), 221-259. DOI: 10.1016/S0004-3702(01)00064-9

Granovetter, M. (1985) Economic action and social structure: The problem of embeddedness. American Journal of Sociology 91(3): 481-510. DOI: 10.1086/228311

Kuhn, T,S, (1962) The structure of scientific revolutions. University of Chicago Press, Chicago

Lafuerza L.F., Dyson L., Edmonds B., McKane A.J. (2016) Staged Models for Interdisciplinary Research. PLoS ONE 11(6): e0157261, DOI: 10.1371/journal.pone.0157261

Miller, J. H., Page, S. E., & Page, S. (2009). Complex adaptive systems. Princeton university press.

Newell A, Simon H.A. (1972) Human problem solving. Prentice Hall, Englewood Cliffs, NJ

Simon, H.A. (1948) Administrative behaviour: A study of the decision making processes in administrative organisation. Macmillan, New York

Simon, H.A. (1957) Models of Man: Social and rational. John Wiley, New York


Dignum, F., Edmonds, B. and Carpentras, D. (2022) Socio-Cognitive Systems – A Position Statement. Review of Artificial Societies and Social Simulation, 2nd Apr 2022. https://rofasss.org/2022/04/02/scs




Reply to Frank Dignum

By Edmund Chattoe-Brown

This is a reply to Frank Dignum’s reply (about Edmund Chattoe-Brown’s review of Frank’s book)

As my academic career continues, I have become more and more interested in the way that people justify their modelling choices, for example, almost every Agent-Based Modeller makes approving noises about validation (in the sense of comparing real and simulated data) but only a handful actually try to do it (Chattoe-Brown 2020). Thus I think two specific statements that Frank makes in his response should be considered carefully:

  1. … we do not claim that we have the best or only way of developing an Agent-Based Model (ABM) for crises.” Firstly, negative claims (“This is not a banana”) are not generally helpful in argument. Secondly, readers want to know (or should want to know) what is being claimed and, importantly, how they would decide if it is true “objectively”. Given how many models sprang up under COVID it is clear that what is described here cannot be the only way to do it but the question is how do we know you did it “better?” This was also my point about institutionalisation. For me, the big lesson from COVID was how much the automatic response of the ABM community seems to be to go in all directions and build yet more models in a tearing hurry rather than synthesise them, challenge them or test them empirically. I foresee a problem both with this response and our possible unwillingness to be self-aware about it. Governments will not want a million “interesting” models to choose from but one where they have externally checkable reasons to trust it and that involves us changing our mindset (to be more like climate modellers for example, Bithell & Edmonds 2020). For example, colleagues and I developed a comparison methodology that allowed for the practical difficulties of direct replication (Chattoe-Brown et al. 2021).
  2. The second quotation which amplifies this point is: “But we do think it is an extensive foundation from which others can start, either picking up some bits and pieces, deviating from it in specific ways or extending it in specific ways.” Again, here one has to ask the right question for progress in modelling. On what scientific grounds should people do this? On what grounds should someone reuse this model rather than start their own? Why isn’t the Dignum et al. model built on another “market leader” to set a good example? (My point about programming languages was purely practical not scientific. Frank is right that the model is no less valid because the programming language was changed but a version that is now unsupported seems less useful as a basis for the kind of further development advocated here.)

I am not totally sure I have understood Frank’s point about data so I don’t want to press it but my concern was that, generally, the book did not seem to “tap into” relevant empirical research (and this is a wider problem that models mostly talk about other models). It is true that parameter values can be adjusted arbitrarily in sensitivity analysis but that does not get us any closer to empirically justified parameter values (which would then allow us to attempt validation by the “generative methodology”). Surely it is better to build a model that says something about the data that exists (however imperfect or approximate) than to rely on future data collection or educated guesses. I don’t really have the space to enumerate the times the book said “we did this for simplicity”, “we assumed that” etc. but the cumulative effect is quite noticeable. Again, we need to be aware of the models which use real data in whatever aspects and “take forward” those inputs so they become modelling standards. This has to be a collective and not an individualistic enterprise.

References

Bithell, M. and Edmonds, B. (2020) The Systematic Comparison of Agent-Based Policy Models – It’s time we got our act together!. Review of Artificial Societies and Social Simulation, 11th May 2021. https://rofasss.org/2021/05/11/SystComp/

Chattoe-Brown, E. (2020) A Bibliography of ABM Research Explicitly Comparing Real and Simulated Data for Validation. Review of Artificial Societies and Social Simulation, 12th June 2020. https://rofasss.org/2020/06/12/abm-validation-bib/

Chattoe-Brown, E. (2021) A review of “Social Simulation for a Crisis: Results and Lessons from Simulating the COVID-19 Crisis”. Journal of Artificial Society and Social Simulation. 24(4). https://www.jasss.org/24/4/reviews/1.html

Chattoe-Brown, E., Gilbert, N., Robertson, D. A., & Watts, C. J. (2021). Reproduction as a Means of Evaluating Policy Models: A Case Study of a COVID-19 Simulation. medRxiv 2021.01.29.21250743; DOI: https://doi.org/10.1101/2021.01.29.21250743

Dignum, F. (2020) Response to the review of Edmund Chattoe-Brown of the book “Social Simulations for a Crisis”. Review of Artificial Societies and Social Simulation, 4th Nov 2021. https://rofasss.org/2021/11/04/dignum-review-response/

Dignum, F. (Ed.) (2021) Social Simulation for a Crisis: Results and Lessons from Simulating the COVID-19 Crisis. Springer. DOI:10.1007/978-3-030-76397-8


Chattoe-Brown, E. (2021) Reply to Frank Dignum. Review of Artificial Societies and Social Simulation, 10th November 2021. https://rofasss.org/2021/11/10/reply-to-dignum/




Response to the review of Edmund Chattoe-Brown of the book “Social Simulations for a Crisis”

By Frank Dignum

This is a reply to a review in JASSS (Chattoe-Brown 2021) of (Dignum 2021).

Before responding to some of the specific concerns of Edmund I would like to thank him for the thorough review. I am especially happy with his conclusion that the book is solid enough to make it a valuable contribution to scientific progress in modelling crises. That was the main aim of the book and it seems that is achieved. I want to reiterate what we already remarked in the book; we do not claim that we have the best or only way of developing an Agent-Based Model (ABM) for crises. Nor do we claim that our simulations were without limitations. But we do think it is an extensive foundation from which others can start, either picking up some bits and pieces, deviating from it in specific ways or extending it in specific ways.

The concerns that are expressed by Edmund are certainly valid. I agree with some of them, but will nuance some others. First of all the concern about the fact that we seem to abandon the NetLogo implementation and move to Repast. This fact does not make the ABM itself any less valid! In itself it is also an important finding. It is not possible to scale such a complex model in NetLogo beyond around two thousand agents. This is not just a limitation of our particular implementation, but a more general limitation of the platform. It leads to the important challenge to get more computer scientists involved to develop platforms for social simulations that both support the modelers adequately and provide efficient and scalable implementations.

That the sheer size of the model and the results make it difficult to trace back the importance and validity of every factor on the results is completely true. We have tried our best to highlight the most important aspects every time. But, this leaves questions as to whether we make the right selection of highlighted aspects. As an illustration to this, we have been busy for two months to justify our results of the simulations of the effectiveness of the track and tracing apps. We basically concluded that we need much better integrated analysis tools in the simulation platform. NetLogo is geared towards creating one simulation scenario, running the simulation and analyzing the results based on a few parameters. This is no longer sufficient when we have a model with which we can create many scenarios and have many parameters that influence a result. We used R now to interpret the flood of data that was produced with every scenario. But, R is not really the most user friendly tool and also not specifically meant for analyzing the data from social simulations.

Let me jump to the third concern of Edmund and link it to the analysis of the results as well. While we tried to justify the results of our simulation on the effectiveness of the track and tracing app we compared our simulation with an epidemiological based model. This is described in chapter 12 of the book. Here we encountered the difference in assumed number of contacts per day a person has with other persons. One can take the results, as quoted by Edmund as well, of 8 or 13 from empirical work and use them in the model. However, the dispute is not about the number of contacts a person has per day, but what counts as a contact! For the COVID-19 simulations standing next to a person in the queue in a supermarket for five minutes can count as a contact, while such a contact is not a meaningful contact in the cited literature. Thus, we see that what we take as empirically validated numbers might not at all be the right ones for our purpose. We have tried to justify all the values of parameters and outcomes in the context for which the simulations were created. We have also done quite some sensitivity analyses, which we did not all report on just to keep the volume of the book to a reasonable size. Although we think we did a proper job in justifying all results, that does not mean that one can have different opinions on the value that some parameters should have. It would be very good to check the influence on the results of changes in these parameters. This would also progress scientific insights in the usefulness of complex models like the one we made!

I really think that an ABM crisis response should be institutional. That does not mean that one institution determines the best ABM, but rather that the ABM that is put forward by that institution is the result of a continuous debate among scientists working on ABM’s for that type of crisis. For us, one of the more important outcomes of the ASSOCC project is that we really need much better tools to support the types of simulations that are needed for a crisis situation. However, it is very difficult to develop these tools as a single group. A lot of the effort needed is not publishable and thus not valued in an academic environment. I really think that the efforts that have been put in platforms such as NetLogo and Repast are laudable. They have been made possible by some generous grants and institutional support. We argue that this continuous support is also needed in order to be well equipped for a next crisis. But we do not argue that an institution would by definition have the last word in which is the best ABM. In an ideal case it would accumulate all academic efforts as is done in the climate models, but even more restricted models would still be better than just having a thousand individuals all claiming to have a useable ABM while governments have to react quickly to a crisis.

The final concern of Edmund is about the empirical scale of our simulations. This is completely true! Given the scale and details of what we can incorporate we can only simulate some phenomena and certainly not everything around the COVID-19 crisis. We tried to be clear about this limitation. We had discussions about the Unity interface concerning this as well. It is in principle not very difficult to show people walking in the street, taking a car or a bus, etc. However, we decided to show a more abstract representation just to make clear that our model is not a complete model of a small town functioning in all aspects. We have very carefully chosen which scenarios we can realistically simulate and give some insights in reality from. Maybe we should also have discussed more explicitly all the scenarios that we did not run with the reasons why they would be difficult or unrealistic in our ABM. One never likes to discuss all the limitations of one’s labor, but it definitely can be very insightful. I have made up for this a little bit by submitting an to a special issue on predictions with ABM in which I explain in more detail, which should be the considerations to use a particular ABM to try to predict some state of affairs. Anyone interested to learn more about this can contact me.

To conclude this response to the review, I again express my gratitude for the good and thorough work done. The concerns that were raised are all very valuable to concern. What I tried to do in this response is to highlight that these concerns should be taken as a call to arms to put effort in social simulation platforms that give better support for creating simulations for a crisis.

References

Dignum, F. (Ed.) (2021) Social Simulation for a Crisis: Results and Lessons from Simulating the COVID-19 Crisis. Springer. DOI:10.1007/978-3-030-76397-8

Chattoe-Brown, E. (2021) A review of “Social Simulation for a Crisis: Results and Lessons from Simulating the COVID-19 Crisis”. Journal of Artificial Society and Social Simulation. 24(4). https://www.jasss.org/24/4/reviews/1.html


Dignum, F. (2020) Response to the review of Edmund Chattoe-Brown of the book “Social Simulations for a Crisis”. Review of Artificial Societies and Social Simulation, 4th Nov 2021. https://rofasss.org/2021/11/04/dignum-review-response/




The ASSOCC Simulation Model: A Response to the Community Call for the COVID-19 Pandemic

Amineh Ghorbani1 , Fabian Lorig2 , Bart de Bruin1 , Paul Davidsson2, Frank Dignum3, Virginia Dignum3, Mijke van der Hurk4, Maarten Jensen3, Christian Kammler3, Kurt Kreulen1, Luis Gustavo Ludescher3, Alexander Melchior4, René Mellema3, Cezara Păstrăv3, Loïs Vanhée5, and Harko Verhagen6

1TU Delft, Netherlands,
2Malmö University, Sweden, 3Umeå University, Sweden, 4Utrecht University, Netherlands, 5University of Caen, France,6Stockholm University, Sweden
*

(A contribution to the: JASSS-Covid19-Thread)

Abstract: This article is a response to the call for action to the social simulation community to contribute to research on the COVID-19 pandemic crisis. We introduce the ASSOCC model (Agent-based Social Simulation for the COVID-19 Crisis), a model that has specifically been designed and implemented to address the societal challenges of this pandemic. We reflect on how the model addresses many of the challenges raised in the call for action. We conclude by pointing out that the focus of the efforts of the social simulation community should be less on the data and prediction-based simulations but rather on the explanation of mechanisms and exploration of social dependencies and impact of interventions.

Introduction

The COVID-19 crisis is a pandemic that is currently spreading all over the world. It has already had a dramatic toll on humanity affecting the daily life of billions of people and causing a global economic crisis resulting in deficits and unemployment rates never experienced before. Decision makers as well as the general public are in dire need of support to understand the mechanisms and connections in the ongoing crisis as well as support for potentially life-threatening and far-reaching decisions that are to be made with unknown consequences. Many countries and regions are struggling to deal with the impacts of the COVID-19 crisis on healthcare, economy and social well-being of communities, resulting in many different interventions. Examples are the complete lock-down of cities and countries, appeals to the individual responsibility of citizens, and suggestions to use digital technology for tracking and tracing of the disease spread. All these strategies require considerable behavioural changes by all individuals.

In such an unprecedented situation, agent-based social simulation seems to be a very suitable technique for achieving a better understanding of the situation and for providing decision-making support. Most of the available simulations for pandemics focus either on specific aspects of the crisis, such as epidemiology (Chang et al., 2020) or simplified general agglomerated mechanics (e.g., IndiaSIM). Many models, repurposing existing models that were originally developed for other pandemics such as influenza are mostly illustrative and intend to provide theory exposition (Squazzoni et al., 2020). Although current simulations are based on advanced statistical modelling that enables sound predictions of specific aspects of the disease, they use very limited models of human motives and cultural differences. Yet, understanding the possible consequences of drastic policy measures requires more than statistical analysis such as R0 factor (the basic reproduction number, which denotes the expected number of cases directly generated by one case in a population) or economic variables. Measures impact people and thus need to consider individuals’ needs (e.g., affiliation, control, or self-fulfilment), social networks (norms, relationships), and how these attributes and conditions can quickly change during difficult situations (e.g., need for job and food security, overloaded hospitals, loss of relatives).

In this context we have developed ASSOCC (Agent-based Social Simulation for the COVID-19 Crisis; see Figure 1) as a many-faceted observatory of scenarios. In ASSOCC, we connect the many involved aspects in a cohesive simulation, for helping stakeholders to raise their general awareness on all critical aspects of the problem and especially the dependencies between them. Of course, one can hardly aim to cover a large variety of aspects and have very complete models on each of them. Thus, we strike a balance between broadness of the model and accuracy on all aspects. This simulation delivers a complementary perspective to state of the art disciplinary models. Where most of other simulations offer sharp yet isolated pieces of the image, our approach is valuable for combining the pieces of the puzzle since a specific modelling focus can limit space for debate (ní Aodha & Edmonds, 2017).

The ASSOCC approach puts the human behaviour central as a linking pin between many disciplines and aspects: psychology (needs, values, beliefs, plans), social sensitivity (norms, social networks, work relationships), infrastructures (transportation, supplies), epidemiology (spreading), economy (transactions, bankruptcy), cultural influences and public measures (closing activities, lock-down, social distancing, testing). The already complex model is extended on a daily basis. This is done in a largely modular fashion such that specific aspects can be switched on and off during the runs. This leads to some limitations and also requires re-calibration of variables, but overall it seems worth the effort when looking at the first results of the scenarios we have simulated.

In this article, we aim to share our approach to simulating the COVID-19 pandemic, outline how the building and use of ASSOCC takes up a number of the challenges that were posed in (Squazzoni et al., 2020), and emphasize the potentials of agent-based simulation as method in mastering pandemics.

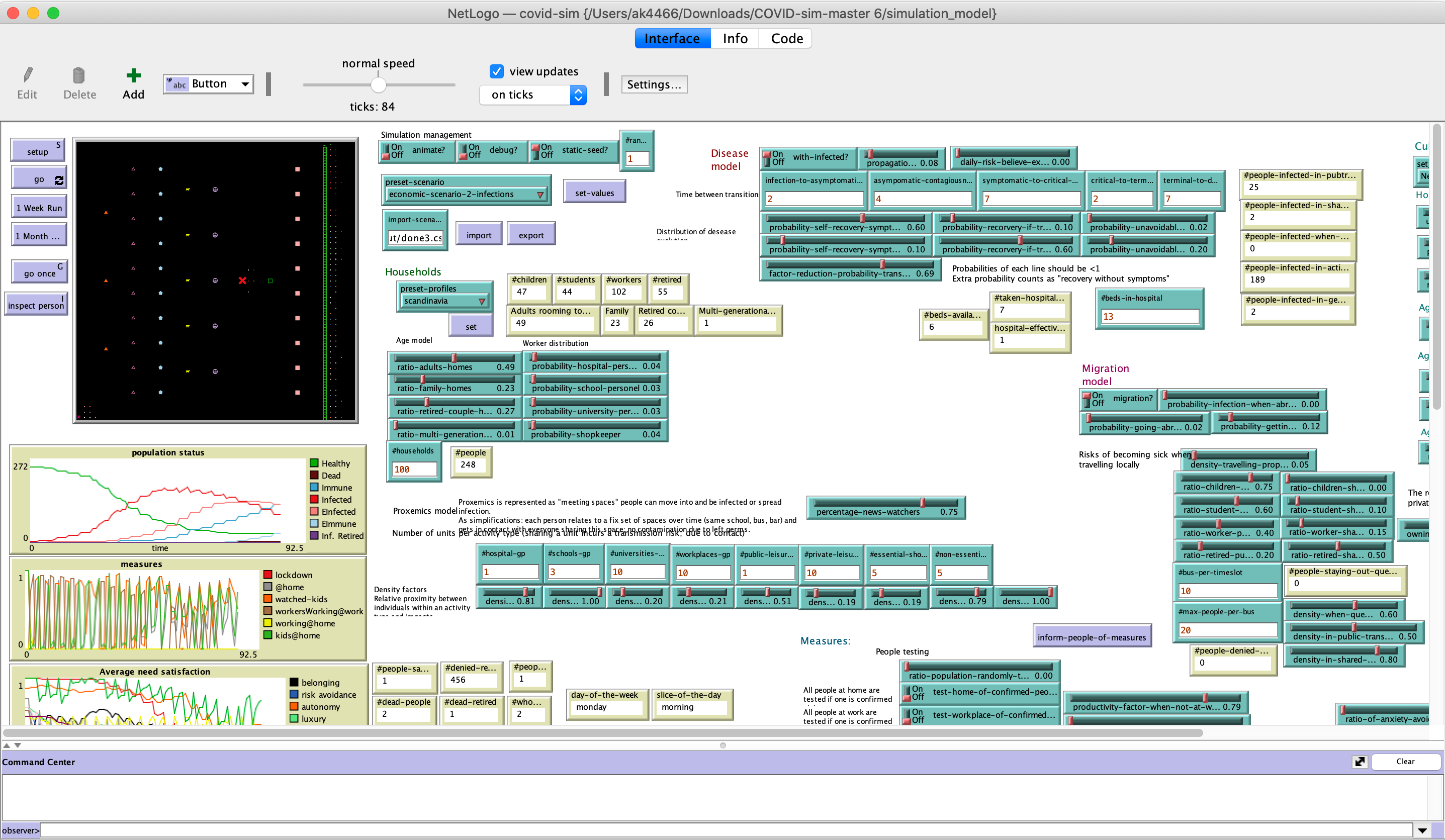

Figure 1: A screenshot of the Graphical User Interface of the ASSOCC simulation

Figure 1: A screen shot of the Graphical User Interface of the ASSOCC simulation

Introducing the ASSOCC Model

The goal of the ASSOCC simulation model is to integrate different parts of our daily life that are affected by the pandemic in order to support decision makers when trading off different policies against each other. It facilitates the identification of potential interdependencies that might exist and need to be addressed. This is important as different countries, cultures and populations affect the suitability and consequences of measures thus requiring local conditions to be taken into account. The model allows stakeholders to study individual and social reactions to different policies, to explore different scenarios, and to analyse their potential effects.

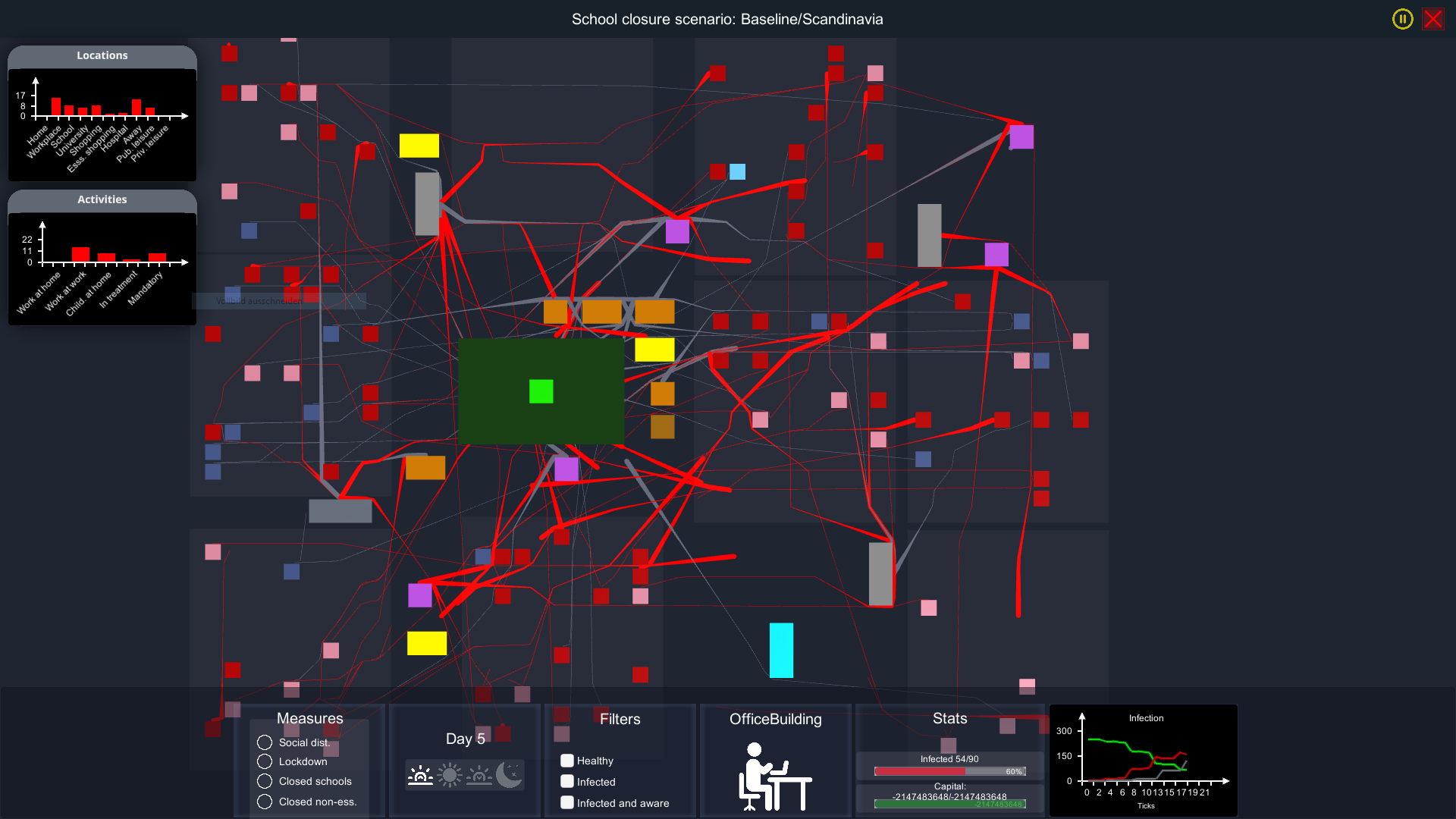

Figure 2: A screenshot of the base simulation model.

Figure 2: A screen shot of the base simulation model.

How it works

The ASSOCC simulation model is based on a synthetic population that consists of a set of artificial individuals (see Figure 1), each with given needs, demographic characteristics and attitude towards regulations and risks. By having all these agents decide over time what they should be doing, we can analyse their reactions to many different policies, such as total lock-down or voluntary isolation. Agents can move, perceive other agents, and decide on their actions based on their individual characteristics and their perception of the environment. The environment constrains the physical actions of the agents but can also impose norms and regulations on their behaviour. Through interaction, agents can take over characteristics from the other agents, such as becoming infected with COVID-19, or receiving information.

Agents

In the ASSOCC model, there are four types of agents: children, students, workers, and retirees. These types represent different age groups with different socio-demographic attributes, common activities, infection risks and behaviours. Each agent has a health status that represents being infected, symptomatic or asymptomatic contagiousness, and a critical state. Moreover, agents have needs and capabilities as well as personal characteristics such as risk aversion and the propensity to follow the law. Needs of the agent include health, wealth and belonging. They are modelled using the water tank model introduced by Dörner et al. (2006). Agent capabilities capture for instance their jobs or family situations. Agents need a minimum wealth value to survive which they receive by working or through subsidies (or by living together with a working agent). In shops and workplaces, agents trade wealth for products and services. Agents pay tax to a central government that then uses this money for subsidies and the maintenance of public services such as hospitals and schools.

Places

During the simulation, agents can move between different places according to their needs and obligations. Places represent homes, shops, hospitals, workplaces, schools, airports and stations. By assigning agents to homes, different households can be represented: single adults, families, retirement homes, and multi-generational households with children, adults and elderly people. The configuration of households is assumed to have an impact on the spreading of COVID-19 and great differences in household configurations exist between countries. Thus, the distribution of these households can be set in the simulation to analyse the situation in different cities
or countries.

Policies

Policies describe interventions that can be taken by decision makers such as social distancing, infection and immunity testing or closing of schools and workplaces. Policies have complex effects on health, wealth and well-being of all agents. Policies can be extended in many different ways to provide an experimentation environment for decision makers. It is not only the decision of whether or not to implement certain policies but also the point in time when the policy is implemented that influences its success.

Conceptual Design

The ASSOCC model has been conceptualized based on many theories from various scientific disciplines, including psychology (basic motives and needs (McClelland, 1987; Jerome, 2013)), sociology (Schwartz value system (Schwartz, 2012)), culture (Hofstede’s cultural dimensions (Hofstede et al., 2010)), economy (circular flow of income (Murphy, 1993)), and epidemiology (the SEIR model (Cope et al., 2018)). For the disease model, we looked at the following sources: a case study of a corona time lapse (Xu et al., 2020), a cohort study showing the general time lapse of the disease with and without fatality (Zhou et al., 2020) and the incubation period determined by confirmed cases (Lauer et al., 2020). This theory-driven model, determines the reaction of agents to policies and their physical and social context.

A short description of the conceptual architecture of ASSOCC as well as an overview of the agent architecture are available at the project website.

Tools

The simulation is built in Netlogo (see Figure 2 with a visual interface in Unity (see Figure 1. The Netlogo model can be used as a standalone simulation model. For the scenarios, we use the Unity interface for better visualisation of the simulation. The complete source code is available on Github under a Creative Commons Attribution-NonCommercial 4.0 International License (CC BY-NC 4.0). Note that at the time of publication of this article, this is still a beta version of the model, which we are continuously developing. The complete description of the agent-based model using the ODD protocol can as well be found on the ASSOCC website.

Addressing Key Challenges

Having explained the ASSOCC framework, in this section, we explain how our modelling effort addresses the
challenges raised by Squazzoni et al. (2020).

Like any model, the ASSOCC model cannot be a complete representation of reality and has its own limitations. Yet, we believe that the dimensions of social complexity that we have included provide a promising ground to draw useful insights. As rightfully highlighted by Squazzoni et al. (2020), the quality of a model depends on its purpose, its theoretical assumptions, the level of abstraction, and the quality of data.

The purpose of the ASSOCC model is to illustrate and investigate mechanisms. Through the simulation of scenarios, ASSOCC shows dependencies between human behaviour and the spread of the virus, the economic incentives and the psychological needs of people.

In the next sections we aim to explain how the ASSOCC model addresses the main issues raised in (Squazzoni et al., 2020).

Social Complexity

In order to incorporate pre-existing behavioral attitudes, network effects, social norms and culture that influence people’s response to policy measure, we have built a cross-disciplinary extended team of researchers. We have spent extra time and effort to construct a complex model where social complexity is extensively taken into account. As an example, the Maslow theory for individual needs takes pre-existing behavioral attitudes of individuals into account (Jerome, 2013). By connecting this theory to Schwartz value dimensions (Schwartz, 2012) and connecting these dimensions to the cultural dimensions of Hofstede (Hofstede et al., 2010), we incorporate a whole spectrum of individual biological and social needs all the way to cultural diversity among nations.

Yet, the limitations of ASSOCC are in the richness of each of the societal dimensions. We use some rather simple models, for example, in the economic, culture, social network and transport aspects. We document which choices have been made to indicate which complexities we left out and why they were left out and why we think this does not affect the validity of our results. For example, in the transport dimension we do not distinguish between cars and bikes. We do not need that as we do not have large distances and both cars and bikes can be used as solo transport means. We are aware that there are differences in economic terms and also in values for choosing between the two means of transport, but these aspects are not very relevant for the spread of the virus.

Transparency

Although there is pressure on the community to respond to this crisis and to provide expert judgement, we have not sacrificed the complexity of our model, nor it’s transparency to provide rapid answers. In fact, we have aimed to make our modelling process as transparent as possible. Starting from low level programming code, ASSOCC uses Github repository to make the code publicly available. Besides code documentation, our large scale model makes use of the ODD protocol to make the model transparent at the conceptual level. Additionally, by building the Unity interface layer on the Netlogo model, we aim to connect policy scenarios to the parameter setup of the model, so that policy makers themselves can see how changes to scenarios leads to various outcomes.

By emphasizing that ASSOCC creates simulations of policy scenarios, we step away from giving a particular advice for a “best” policy. Rather we highlight the fundamental questions and priorities that have to be dealt with to choose among various policies. This is done by showing the consequences of the implementation of various scenarios and comparing them. This comparison can for example show how different groups of people are affected economically and health-wise by a policy. The most appropriate policy thus depends on the outcomes that are deemed more desirable.

Data

Given the short time since the outbreak, accurate data on the COVID-19 outbreak suitable for complex agent-based models is not yet available. It is not clear how various cases are defined and how the data is collected. However, in our view, this should not limit our modelling abilities for this much-needed rapid response.

In our view, detailed data is not required to build a useful model. In fact, our model is a ’SimCity’ to study various policy scenarios rather than actual data-driven representation of cities. While we have made sure that our model can show similar patterns to the ones observed in reality for overall validity, small fine-grain data is not included. The data used for the simulation comes from particular epidemiological models, from economic models and from calibration of the model against known, normal situations.

As illustrated in models that were described in (Squazzoni et al., 2020), even models that are calibrated with real-world data fail to capture important aspects such as network effects as these changes are still based on stochastic randomized processes. Therefore, being aware that the current data is not yet available nor reliable,
we have built our model on strong theoretical basis in order to avoid oversimplification of factors that play important roles in this crisis.

Interface between modelling and policy

As highlighted by Squazzoni et al. (2020), “good pandemic models are not always good policy advice models”. We fully agree with this point, which is central to our modelling efforts. A user-interface has been especially developed in Unity (see Figure 1) to support comprehension of the model by policy makers and to facilitate experimentation. In the Unity interface, one can explore the different parameters of a scenario, see the results of the simulations in graph form and also follow several aspects live through the elements available in the spatial representation of the town. This spatial interface is meant purely for better understanding of the model. We believe that having clarity regarding our modelling goal increases policy makers trust in our insights.

In addition, we have been in close contact with policy makers around the world to, on the one hand, understand their needs and immediate and long-term concerns, and on the other hand, communicate our model’s capabilities in the most concise manner to support their decisions. To date, we have engaged with policy makers in the Netherlands, Italy and Sweden.

Predictive Power

In our interactions with policy makers and other users, we make clear that the ASSOCC platform is not meant for giving detailed predictions, but to support the generation of insights. Such a broad model is best used to indicate dependencies and trends between different aspects of the society. Due to the computing power needed for each agent running the complex reasoning, it is difficult to scale this type of model to more than a few thousand agents, at least in NetLogo.
The validation of the model can be done through the causal chains that can be followed throughout the model. I.e. certain outcomes can be linked through agent states to certain causes in the environment or the actions of other agents. If these causal chains can be interpreted as plausible stories that can be confirmed by the theories of those respective aspects, it is possible to achieve a certain type of high level validation. So, this is not a validation on data, but validation based on expert opinion.

A second type of validation that can be done on this type of ABM is to make a detailed comparison with established epidemiological models. For instance, we are comparing our simulation with the one used for (Ferretti et al., 2020) in a particular scenario where the effect of using tracking and tracing apps is investigated. By translating the assumptions and parameters very carefully to ASSOCC parameters and comparing the resulting simulations, we can validate the underlying models against more traditional ones and also show possible deviations that might come up and that highlights advantages or lacunas in the ASSOCC model. The results of this comparison will be published jointly by the two groups. Finally, we are calibrating ASSOCC parameters by using statistical data, such as R0, number of deaths, and demographic data as means to improve validity.

Conclusion

In this article, we presented the ASSOCC model as a comprehensive modelling endeavour that aims to contribute to the efforts for managing the COVID-19 crisis. By modelling multiple aspects of the society and interrelating them, we provide insights into the underlying mechanisms in the society that are influenced both by the outbreak as well as policy measures that aim to control it.

Being aware of the challenges, we have aimed to include as much social complexity as possible in the model to avoid biases and oversimplification. At the same time, by being in close contact with policy makers around the world, we have taken the actual needs and considerations into account, while providing a traceable, usable and comprehensible user interface that brings the modelling insights within the reach of policy makers. In our modelling efforts, we have paid extra attention to transparency, providing well-documented and open-source code that can be used by the rest of the simulation community.

All the assumptions, underlying theories and the source code of ASSOCC are available on the project website and on Github. We invite people to use it, give feedback and based on this feedback we continuously improve the model and its parameters. According to the development of the pandemic and the state of discussion, new scenarios will be added as well.

We hope that the ASSOCC model can contribute to handling this crisis in a way that shows the capabilities and usefulness of agent-based modelling.

References

Chang, S. L., Harding, N., Zachreson, C., Cliff, O. M. & Prokopenko, M. (2020). Modelling transmission and control of the covid-19 pandemic in australia. arXiv preprint arXiv:2003.10218 <https://arxiv.org/abs/2003.10218>

Cope, R. C., Ross, J. V., Chilver, M., Stocks, N. P., & Mitchell, L. (2018). Characterising seasonal influenza epidemiology using primary care surveillance data. PLoS computational biology, 14(8), e1006377. doi:10.1371/journal.pcbi.1006377

Dörner, D., Gerdes, J., Mayer, M., & Misra, S. (2006, April). A simulation of cognitive and emotional effects of overcrowding. In Proceedings of the Seventh International Conference on Cognitive Modeling (pp. 92-98). Triest, Italy: Edizioni Goliardiche.

Ferretti, L., Wymant, C., Kendall, M., Zhao, L., Nurtay, A., Abeler-Dörner, L., Parker, M., Bonsall, D. & Fraser, C. (2020). Quantifying sars-cov-2 transmission suggests epidemic control with digital contact tracing. Science,  31 Mar 2020:eabb6936. doi:10.1126/science.abb6936

Hofstede, G., Hofstede, G. J. & Minkov, M. (2010). Cultures and organizations: Software of the mind. revised and expanded 3rd edition. N.-Y.: McGraw-Hill.

Jerome, N. (2013). Application of the Maslow’s hierarchy of need theory; impacts and implications on organizational culture, human resource and employee’s performance. International Journal of Business and Management Invention, 2(3), 39–45.

Lauer, S. A., Grantz, K. H., Bi, Q., Jones, F. K., Zheng, Q., Meredith, H. R., Azman, A. S., Reich, N. G. & Lessler, J. (2020). The incubation period of coronavirus disease 2019 (covid-19) from publicly reported confirmed cases: estimation and application. Annals of internal medicine

McClelland, D. (1987). Human Motivation. Cambridge Univ. Press
Murphy, A. E. (1993). John law and richard cantillon on the circular flow of income. The European Journal of the History of Economic Thought, 1(1), 47–62.

Aodha, L. & Edmonds, B. (2017) Some pitfalls to beware when applying models to issues of policy relevance. In Edmonds, B. & Meyer, R. (eds.) Simulating Social Complexity – a handbook, 2nd edition. Springer, 801-822.

Squazzoni, F., Polhill, J. G., Edmonds, B., Ahrweiler, P., Antosz, P., Scholz, G., Chappin, É., Borit, M., Verhagen, H., Giardini, F. and Gilbert, N. (2020) Computational Models That Matter During a Global Pandemic Outbreak: A Call to Action. Journal of Artificial Societies and Social Simulation, 23(2):10. <http://jasss.soc.surrey.ac.uk/23/2/10.html>. doi: 10.18564/jasss.4298

Xu, Z., Shi, L., Wang, Y., Zhang, J., Huang, L., Zhang, C., Liu, S., Zhao, P., Liu, H., Zhu, L. et al. (2020). Pathological findings of covid-19 associated with acute respiratory distress syndrome. The Lancet respiratory medicine, 8(4), 420–422

Zhou, F., Yu, T., Du, R., Fan, G., Liu, Y., Liu, Z., Xiang, J., Wang, Y., Song, B., Gu, X. et al. (2020). Clinical course and risk factors for mortality of adult inpatients with covid-19 in wuhan, china: a retrospective cohort study. The Lancet, 395(10229), 1054-1062. doi:10.1016/S0140-6736(20)30566-3


Ghorbani, A., Lorig, F., de Bruin, B., Davidsson, P., Dignum, F., Dignum, V., van der Hurk, M., Jensen, M., Kammler, C., Kreulen, K., Ludescher, L. G., Melchior, A., Mellema, R., Păstrăv, C., Vanhée, L. and Verhagen, H. (2020) The ASSOCC Simulation Model: A Response to the Community Call for the COVID-19 Pandemic. Review of Artificial Societies and Social Simulation, 25th April 2020. https://rofasss.org/2020/04/25/the-assocc-simulation-model/
